Precision CNC Machining Aluminum Parts

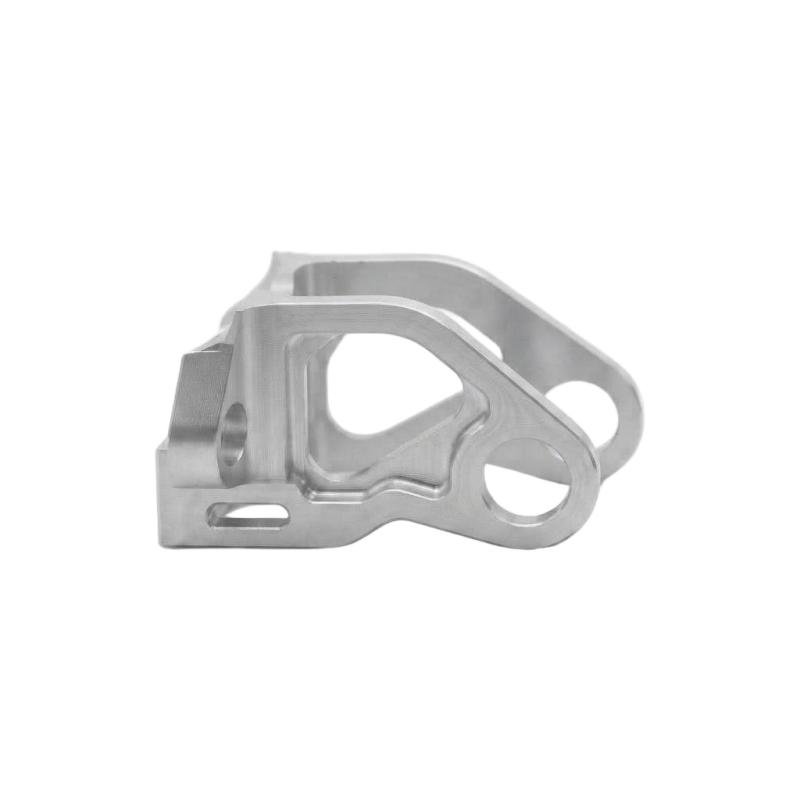

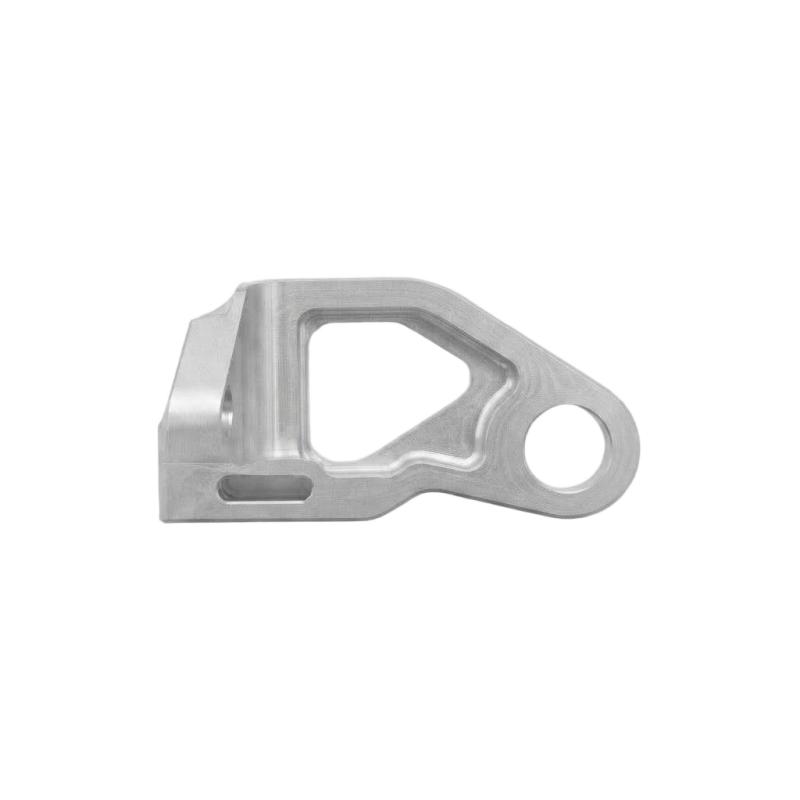

FlexiTurn provides precision 5-axis CNC machining services for custom aluminum structural pivot brackets, including this lightweight twin-plate clevis bracket engineered for articulated load bearing, structural mounting and precision alignment in aerospace, robotic and automotive systems.

This high-strength aluminum clevis features a double-arm design with lightening cutouts, precision coaxial pivot bores, and multi-directional mounting faces. The part requires tight bore coaxiality, consistent geometric alignment, and long-term fatigue resistance to withstand dynamic loading and vibration in service.

5-Axis CNC Milling Capabilities

• Complex Contour & Cavity Milling: 5-axis simultaneous machining delivers continuous tool access to multi-sided profiles and internal recesses, reducing setups and maintaining consistent wall thickness across lightening features.
• Precision Pivot Bore Machining: Cross-bore drilling and precision reaming produce coaxial mating bores with controlled surface finish and diameter tolerance for reliable articulated assembly.
• High-Strength Aluminum Process Calibration: Spindle speeds, feed rates and carbide tool geometries are fine-tuned for 7075 aluminum to control machining-induced surface work hardening, suppress tool chatter and deliver uniform surface finish.
• Minimal-Setup Fixturing Strategy: Optimized workholding and indexing methods minimize clamping operations, reducing cumulative alignment error while maintaining full access to all critical features.

Materials & Technical Specifications

Quality Assurance & Dimensional Control

Every aluminum bracket is manufactured under FlexiTurn’s ISO 9001:2015-aligned quality management system:

• 100% Raw Material Traceability: Full batch tracking for aluminum billet, backed by original Mill Test Certificates with material property verification.
• In-Process Geometric Inspection: In-process dimensional checks at all critical machining stages to verify feature positions, wall thickness and bore alignment.
• Final CMM Verification: Multi-axis coordinate measuring machine (CMM) inspection confirms bore coaxiality, datum positions and overall geometric compliance.
• 100% Burr & Fit Inspection: Visual edge screening and Go/No-Go gauge verification ensure clean edges and consistent bore fit.

Why Choose FlexiTurn

• 5-axis machining expertise: Dedicated 5-axis CNC milling platforms with high-strength aluminum optimized tooling, delivering complex multi-sided clevis geometries and coaxial bore features with minimal setups for superior positional accuracy and reduced lead times.
• Controlled precision manufacturing: Optimized fixturing and machining strategies minimize cumulative alignment error and maintain tight coaxiality tolerances for reliable articulated assembly performance.
• 100% in-house machining control: All milling, drilling, reaming, deburring and dimensional inspection operations are performed on-site with no subcontracting, ensuring reliable lead times and uniform quality across prototype and production volumes.
• Scalable production capacity: Seamless transition from rapid prototype quantities and low-volume validation runs to medium-volume serial production, with consistent process standards across all batch sizes.
• Cost-optimized solutions: Leveraging China’s mature aerospace-grade aluminum supply chain and optimized 5-axis machining workflows, we deliver globally competitive pricing without compromising dimensional accuracy, structural integrity or fatigue performance.
• Dedicated technical project management: Each customer is assigned a dedicated project manager to provide transparent communication, regular progress updates and responsive engineering support from initial quotation through final delivery.
• Strict intellectual property protection: All customer designs, drawings and project data are managed under strict information security protocols. NDAs are executed upon request to fully protect your proprietary specifications.

Partner with FlexiTurn

Submit your 2D/3D CAD drawings (STEP/IGES/PDF) with material requirements, geometric tolerances and target batch quantities. FlexiTurn provides technical DFM feedback and direct-factory quotations within 24 hours.

FlexiTurn – Precision Machining, Delivered with Trust.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
